Inside a C&C build
Dodson components.
C&C builds transmissions using Dodson Motorsport components. This is a look at the parts, not a retail parts store.

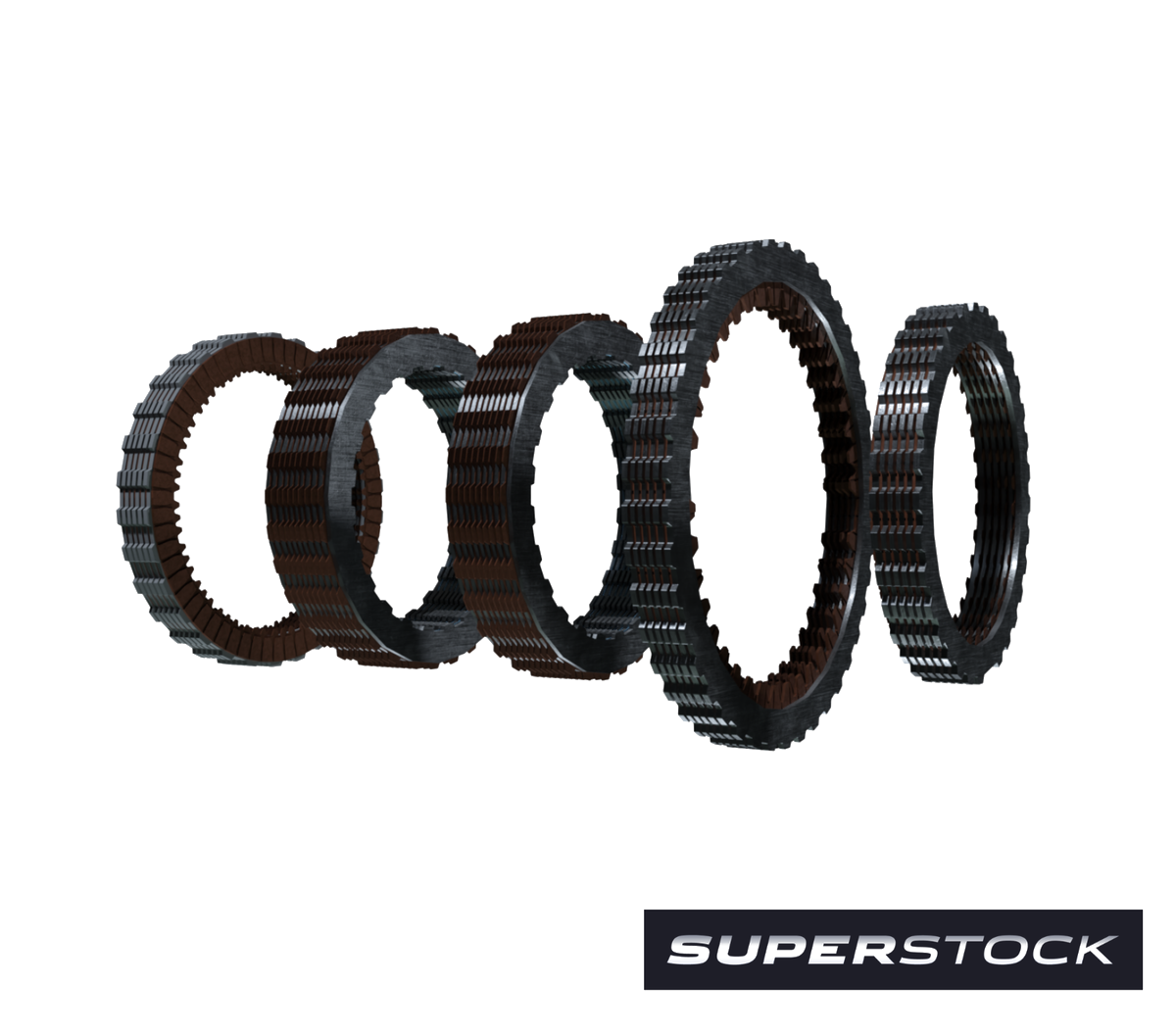

8HP90 Superstock clutch kit
DMS-8715 · Friction plates and steels, with more plates in the C, D and E clutches according to Dodson. The current listing gives no numeric horsepower rating.
Official DMS-8715 details

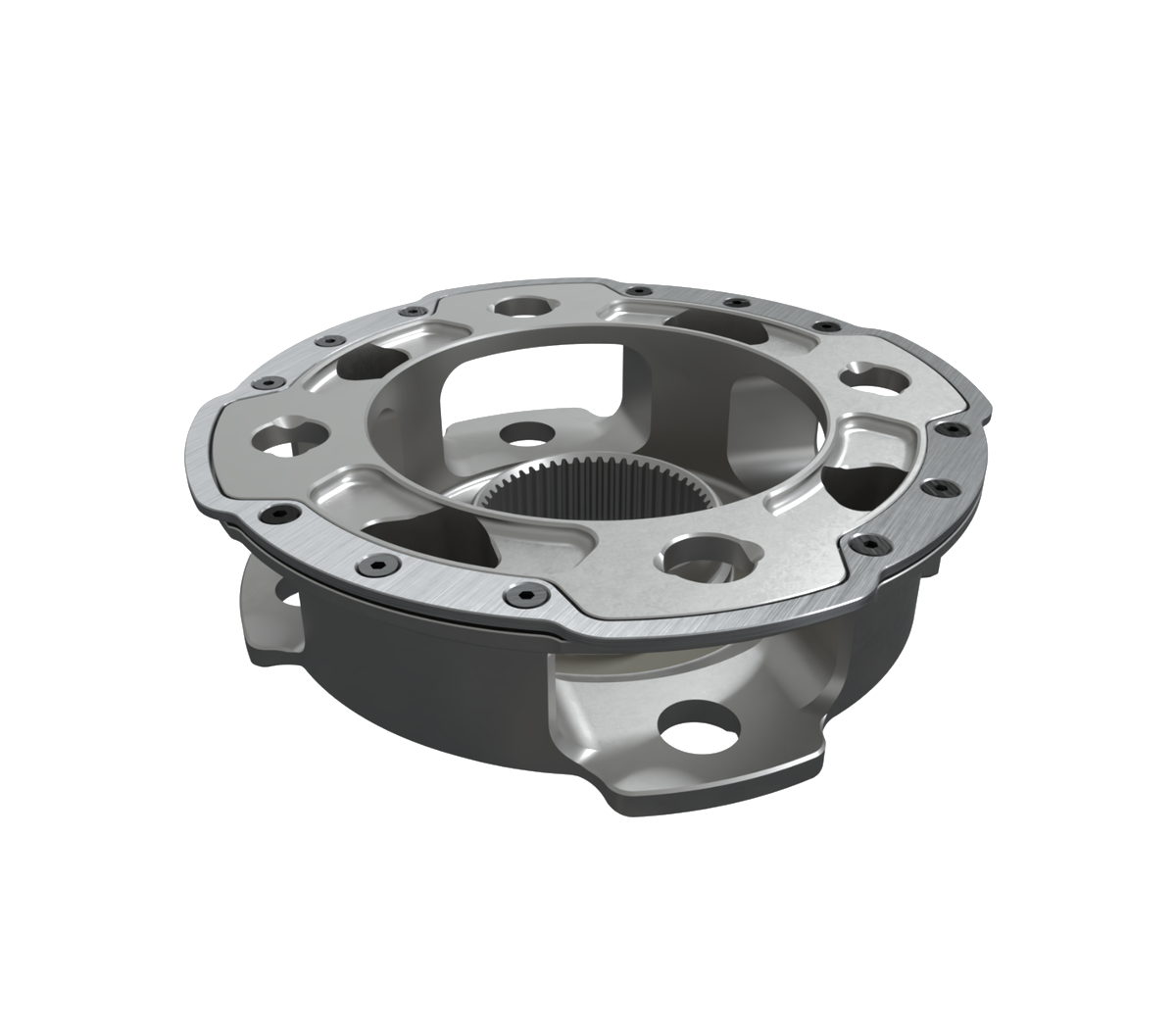

8HP76 billet P2 carrier
DMS-5808 · Billet P2 carrier assembly for the 8HP76. Ask about this upgrade when choosing the parts for your transmission.
Official DMS-5808 detailsDodson clutch levels
Choose the transmission first. These are Dodson clutch kit specifications, not C&C complete build ratings or prices.
8HP51 clutch kits
| Level | Part number | Dodson published power information |
|---|---|---|
| SUPERSTOCK™ | DMS-8534 | Up to 900 hp |
| SPORTSMAN'S™ | DMS-8535 | Up to 1,300 hp |
| SPORTSMAN'S PLUS™ | DMS-8695 | Up to 1,700 hp |
| PROMAX™ | DMS-8536 | Applications exceeding 1,700 hp |
8HP76 clutch kits
| Level | Part number | Dodson published power information |
|---|---|---|
| SUPERSTOCK™ | DMS-8617 | Up to 900 hp |
| SPORTSMAN'S™ | DMS-8618 | Up to 1,300 hp |
| SPORTSMAN'S PLUS™ | DMS-8701 | Up to 1,700 hp |
| PROMAX™ | DMS-8688 | No numeric rating on the current product page. |
8HP90 clutch kits
| Level | Part number | Dodson published power information |
|---|---|---|
| SUPERSTOCK™ | DMS-8715 | No numeric rating on the current product page. |
Dodson does not state wheel or crank horsepower on these product pages. Match the kit to the exact transmission. Linked specifications checked September 5, 2026.
Different units. Different parts.
Dodson names Superstock, Sportsman’s, Sportsman’s Plus and Promax clutch kits for the 8HP51 and 8HP76. Its catalog groups related families together. That grouping does not prove every kit fits every variant.
We confirm the exact SKU and included parts with your build. Supplier component ratings are not complete transmission ratings.
